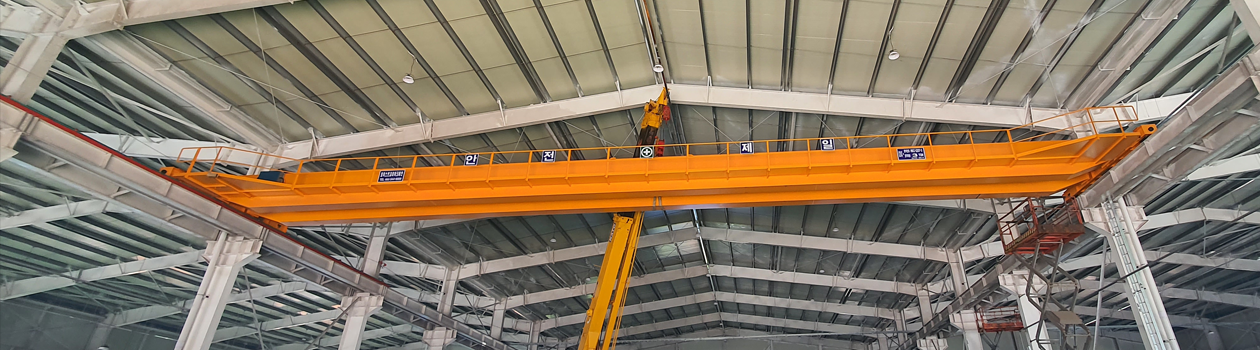

Double Girder Hoist Crane

Double Girder Hoist Crane

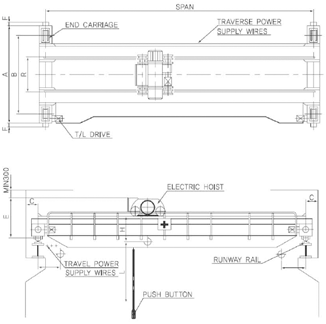

설치도면

Double Girder Hoist Crane 설치도면

표준사양

Double 표준사양
Model Capacity
(ton)		 Max
span(m)		 Life
L(m)		 Speed(m/min) / Motor(Kw) Approx, Dimensions(mm) Travelling
Wheel
(mm)		 Runway
Rail
(kg/m)
Hoisting Traversing Travelling H A B C E F R
HKD-03 3 10 12 4.5/2.8
or
9/5.5		 16/0.5
or
24/0.75		 16/0.5x2
or
24/0.75x2		 420 2500 2000 250 1200 60 950 160 15
15 3000 2500 200
18 20/1.0x2
or
30/1.5x2		 3500 3000 250
HKD-05 5 15 4.2/4.2
or
5.6/5.5		 510 3000 2500 1150
18 3500 3000 22
21 4000 3500
HKD-10 10 14.5 3/6
or
4.5/9		 10/0.5
or
15/0.75		 20/1.0x2
or
30/1.5x2		 750 3100 2500 1550 315
18 3600 3000
21 4350 3500 350 100 400 30
37
HKD-15 15 18 3/8.5
or
4.5/13		 10/10
or
15/1.5		 20/1.5x2
or
30/2.2x2		 995 3850 3000 1900 1200
21 4350 3500
24 4850 4000 2300
HKD-20 20 15 2.8/11.5
or
4.2/17		 1175 3850 3000 2000 1300
21 4450 3500 400 2300 500
24 4950 4000
HKD-30 30 9.5 1.8/11.5
or
2.8/17		 10/1.0x2
or
15/1.5x2		 1480 4450 3500 1800
15 20/2.2
or
30/3.7~5.5		 5000 4000 630
27 5700 4500 2600 710
