도면 & 표준사양

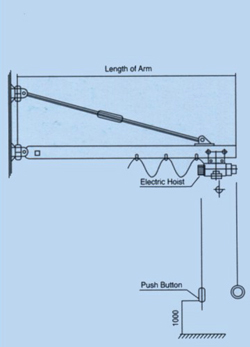

Wall-Mounted Slewing Jibs
Wall-Mounted Slewing Jibs
| Capacity(Ton) |
1/2~3 |
| Working Area |
Min. |
0.8m |
| Max. |
6m |
| Traversing Speed |
16m/min |
| Slewing |
Speed |
Manual |
| Angle |
180˚ |

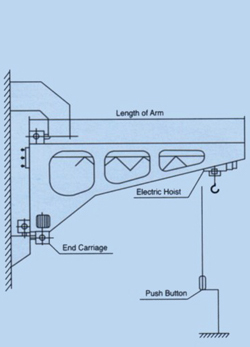

Wall-Travelling Jibs
Wall-Travelling Jibs
| Capacity(Ton) |
1/2~10 |
| Length og Arm |
Max. 6m |
| Traversing Speed |
16m/min |
| Travelling Speed |
16m/min |

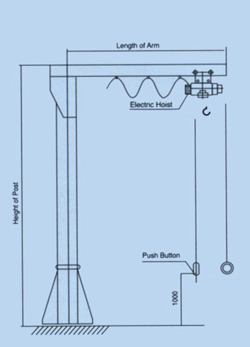

Pillar-Mounted Slewing Jib(A)
Wall-Mounted Slewing Jibs(A)
| Capacity(Ton) |
1/2~2 |
| Working Area |
Min. |
0.8m |
| Max. |
3m |
| Traversing Speed |
16m/min |
| Slewing |
Speed |
Manual |
| Angle |
360˚ |
| Height of Post |
Max. 6m |

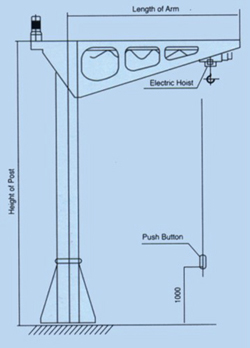

Pillar-Mounted Slewing Jib(B)
Wall-Mounted Slewing Jibs(B)
| Capacity(Ton) |
1/2~5 |
| Working Area |
Min. |
0.8m |
| Max. |
6m |
| Traversing Speed |
16m/min |
| Slewing |
Speed |
0.5rpm |
| Angle |
360˚ |
| Height of Post |
Max. 6m |
